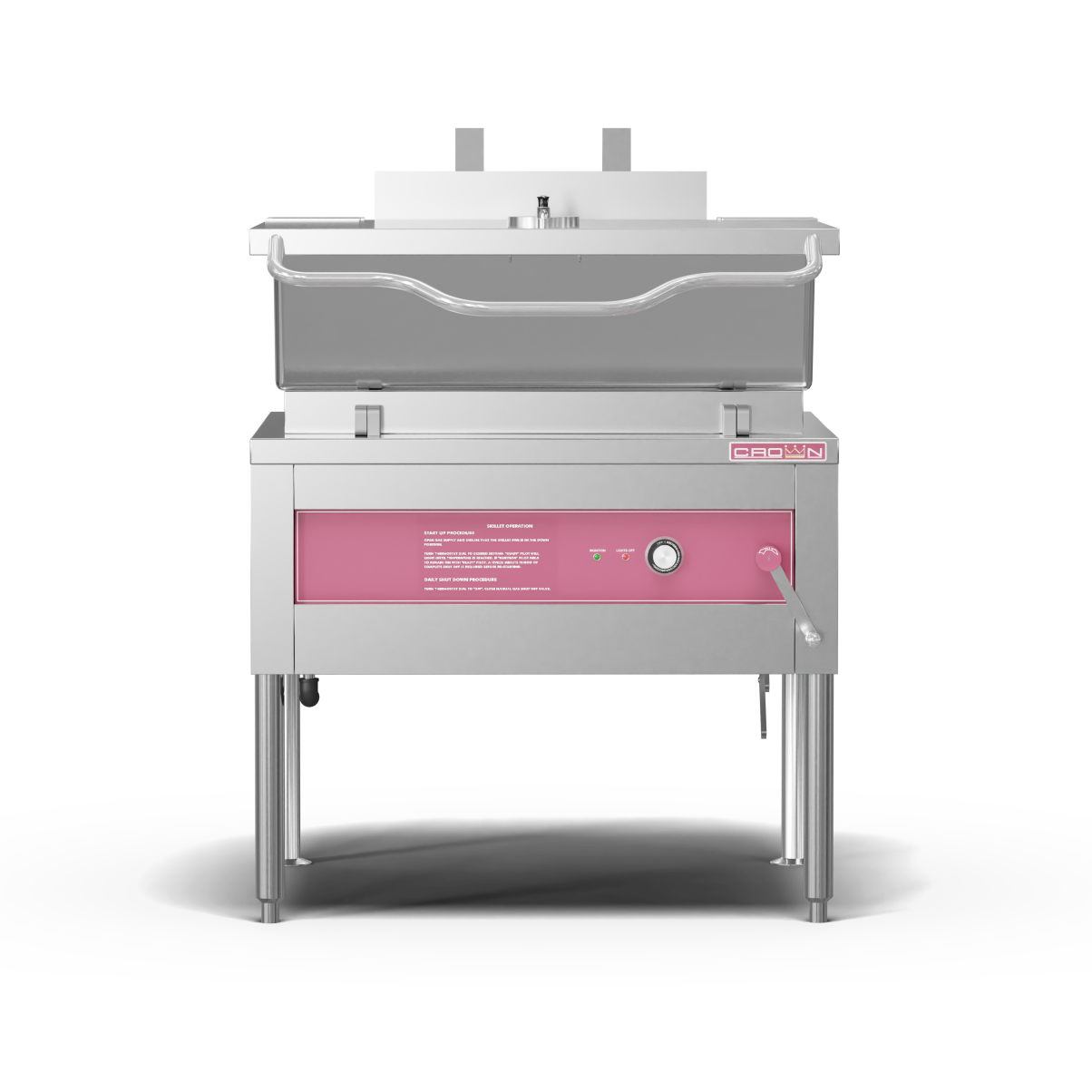

GS-30

Gas Floor Tilt Skillet 30 Gallon – Natural Gas, 100000 Total BTU

The GS-30, GS-40, GS-40N, and GS-60 feature a stainless steel cover with spring assist hinges, full width handle, no-drip condensate guide and vent port with swing cover. The pan has a sloped front and front hinged for easy tilting pour control, complete with a removable pour strainer and etched gallon markings. Pan is formed from 10 gauge type 304 stainless steel with a #4 finish exterior and polished interior with coved corners for ease of cleaning. Cooking surface is of 3/4″ triple-ply construction with 3/8″ thick aluminum core ensuring even heat distribution over entire cooking surface. The pan is heated with stainless steel atmospheric burners with intermittent pilot ignition.
The pan is mounted on a heavy duty welded frame with stainless steel exterior supported by an all welded 1-5/8″ (41mm) stainless steel pipe frame with adjustable bullet feet and rear legs fitted with flange adjustable feet for securing to the floor. Unit has a permanently lubricated, self-contained gear box tilt mechanism to allow the pan to tilt forward for complete emptying of contents. The controls enclosure is designed to meet NEMA-2 and provides a degree of protection against dripping and light splashing water. Unit also includes a solid state thermostat with OFF position and a range of 100-450°F (38-232°C), a thermostat indicator light, an ignition indicator light, pan tilt switch that shuts burners off if tilted more than 5°, and high temperature cut-off set at 500°F(260°C).

-

Features

  • 304 Stainless Steel liner
  • Manual tilt
  • Pour strainer
  • 4” vent port
  • Etched gallon markings
  • Flanged feet
  • Electronic ignition

Options

  • 220 VAC, 1 phase, 50/60 Hz (GSVS-1)
  • Etched liter markings (LMS-30, LMS-152)
  • 2" draw off valve with strainer (TVT-2)
  • 3” draw off valve with strainer (TVT-3)
  • Correctional Options Available
  • Sliding drain pan (S-SDP-2)
  • Pan carrier (PC-3, 40 gallon only)
  • Steam pan insert (SPI-30, SPI-40)
  • 12” Single pantry faucet with swing spout (SF-12)
  • 12” Double pantry faucet with swing spout (DF-12)
  • 3” Stainless steel faucet plumbing enclosure (SPE-1)
  • Single pantry faucet & bracket with filler (SP-KF)
  • Double pantry faucet & bracket with filler (DP-KF)
  • Single pantry faucet spray hose with bracket (SP-RSH)
  • Double pantry faucet spray hose with bracket (DP-RSH)
  • Faucet bracket (FB)
  • Half-size pan carrier for GS-30 when TVT ordered (PCHP)
  • Front flanged feet (FFF-2)
