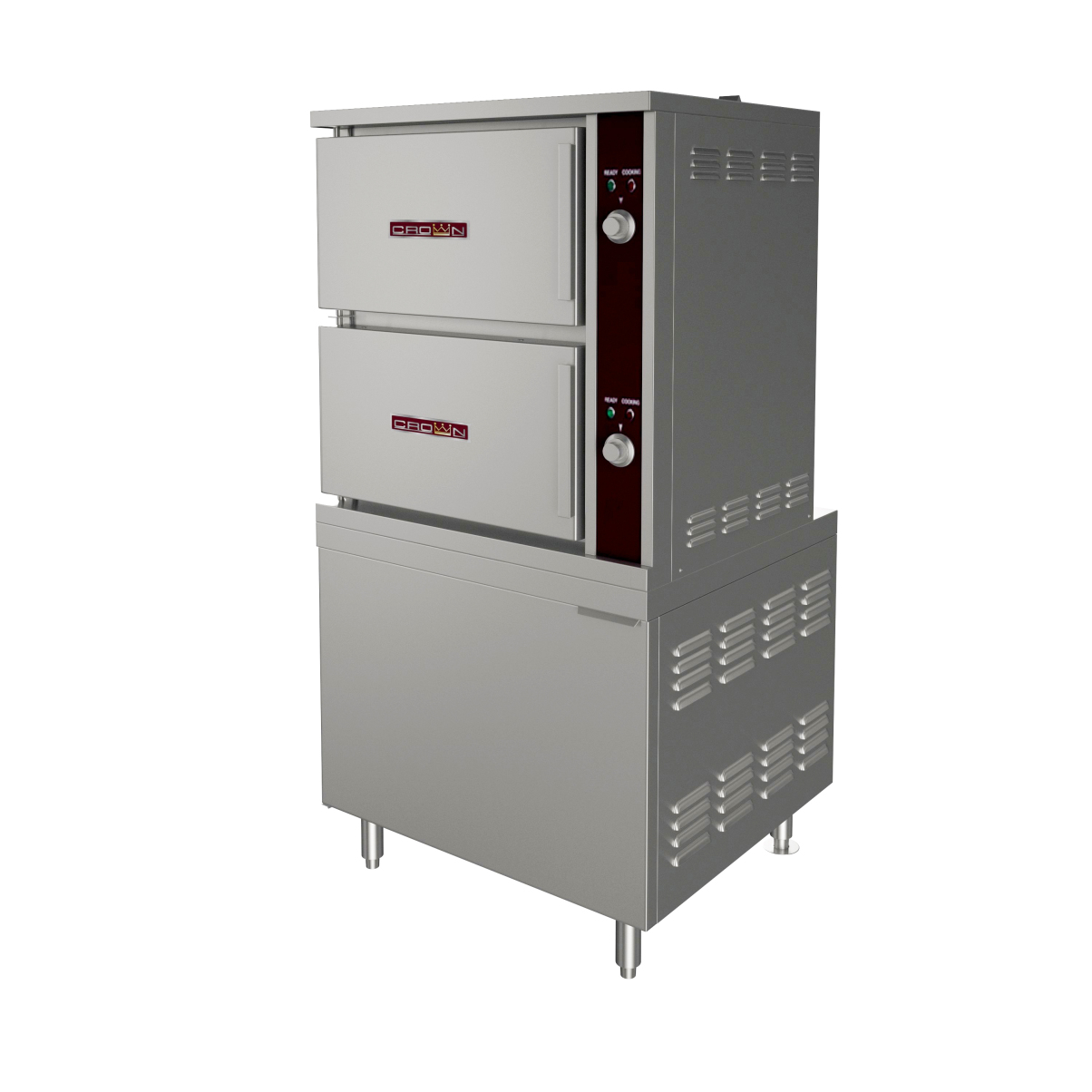

Gas Convection Steamer, 2 Compartments, 10 Pan, 36″ Cabinet,115V, 140,000 BTU

Product Overview

The convection steamer is mounted on a modular, gas fired, steam boiler base, with stainless steel type 304 exterior and #4 finish.
The steamer shall have doors with removable inner liner of stainless steel, fullperimeter gasket seal, outer shell of one piece all welded stainless steel, positive lock and seal mechanism and a stainless steel drip trough connected to a drain to collect condensated when doors are opened.
Each cooking chamber shall be constructed of all welded type 316 stainless steel, fully insulated and provided with removable stainless steel pan supports and shall be:
GCX-2, 13.875” W x 10.875” H x 19.875” D (352 mm x 276 mm x 504 mm).
GCX-10, 13.875” W x 17.375” H x 19.875” D (352 mm x 441 mm x 504 mm).
Control housing shall be accessible through a fully removable side panel and each compartment shall include a 60 minute mechanical timer with ready pilot and cooking pilot light and an audible signal which will sound at the end of the cooking cycle.
Steam flow to the chamber shall be interrupted when the compartment door is opened during cooking cycle and shall be reactivated when the door is closed.
The convection steamer shall be mounted on a cabinet base with full perimeter angle frame, reinforced counter and boiler mountings, gas boiler with controls, all stainless steel exterior, hinged door(s) with magnetic latch and 6” (152 mm) stainless steel legs fitted with 4 adjustable flanged feet for securing unit to the floor.
Standard boiler controls shall include automatic water level control, pressure gauge, water gauge glass, operating pressure control, safety hight-limit pressure control, safety relief valve and cathodic protector.
Unit comes standard with a split water line, CSD-1 boiler controls, electronic ignition, automatic blowdown, and water treatment system.
The unit shall be ASME code stamped and National Board registered, AGA, CGA and NSF certified.


  • Stainless steel construction for easy cleaning and rust prevention
  • 316 stainless steel cooking chamber
  • Coved corners
  • Easy to operate controls
  • Easy open, heavy-duty door with quick release handle
  • Auto steam generator blowdown – standard
  • CSD Code Package standard
  • Water Treatment System


  • Floor Protective Panel for 36″ Gas Boiler Based Cabinets and Up (aluminum panel, painted on top with special anti-reflective black paint) (8976-1)
  • Floor Protective Panel 24″ Gas Boiler Based Cabinets (aluminum panel, painted on top with special anti-reflective black paint) (8978-1)
  • 300,000 BTU 36″ (915 mm) cabinet (B25-30)
  • 220 VAC, 1 Phase, 50/60 Hz operation (SGVS-2)
  • Stainless steel rear panel (SSB-)
  • Stainless steel frame (SSF-)
  • Load compensating timer (LCT)
  • Correctional package
  • Steam take off kit (STOK)
  • Spray and rinse assembly
  • Water in “Y” strainer (condenser feed)
